Precious metal smelting electric furnace equipment
Precious metal smelting electric furnace equipment is a specialized thermal processing system designed for extracting, purifying, and refining precious metals (e.g., gold, silver, platinum, palladium, rhodium) from raw ores, concentrates, secondary resources (such as scrap jewelry, electronic waste, and spent catalysts), or intermediate materials. Unlike traditional fuel-fired furnaces, it relies on electric energy to generate high temperatures, enabling precise control over smelting conditions—critical for the low abundance, high value, and complex separation requirements of precious metals.
The equipment operates on the principle of electric energy-to-thermal energy conversion, using different heating modes to reach the high temperatures (typically 1,100–1,800°C, depending on the metal and raw material) required for smelting. The key processes include:
- Raw Material Pretreatment: Raw materials are crushed, ground, screened, and often mixed with fluxes (e.g., silica, borax) and reducing agents (e.g., coke, charcoal). Fluxes lower the melting point of gangue (unwanted impurities) and form slag, while reducing agents convert metal oxides to elemental metals.
- Electric Heating & Melting: Electric energy is converted into heat to melt the mixed materials. The molten mixture separates into two phases:
- Metal Phase: Precious metals (and associated base metals like copper or lead) form a dense molten alloy (matte or crude metal).
- Slag Phase: Gangue, flux, and non-metallic impurities combine into a low-density, molten slag, which floats on top of the metal phase for easy separation.
- Separation & Post-Treatment: Slag is skimmed off, and the crude precious metal alloy undergoes further refining (e.g., electrolysis, chemical leaching) to remove base metals and achieve high purity (often 99.9%–99.999%).
Different electric furnace types are selected based on raw material properties (e.g., particle size, metal content), scale of production, and target metals. The most common types are:
A complete precious metal smelting electric furnace system integrates multiple functional modules to ensure efficiency, safety, and product quality:
- Furnace Body: The core structure, usually lined with high-temperature refractory materials (e.g., magnesia, alumina) to withstand corrosion and thermal shock. It has a charging port, slag tap, and metal tap.
- Power Supply System: Matched to the furnace type—e.g., low-voltage high-current transformers for EAFs, high-frequency power supplies for induction furnaces—to deliver stable electric energy.
- Electrode System (for arc/plasma furnaces): Graphite or tungsten electrodes that transmit current to generate arcs/plasma. Electrodes are adjustable to maintain stable heating.
- Flue Gas Treatment System: Captures and purifies toxic gases (e.g., SO₂, heavy metal vapors) and dust via cyclones, bag filters, and scrubbers—critical for environmental compliance and recovering fine precious metal particles.
- Control & Monitoring System: Real-time tracking of temperature, pressure, current, and voltage. Automated adjustments (e.g., electrode position, power input) ensure stable smelting and reduce human error.
Compared to fuel-fired furnaces, electric furnaces offer unique benefits tailored to precious metal processing:
- Precise Temperature Control: Enables targeted melting of precious metals while minimizing loss to slag or vapor—vital for high-value metals where even 1% loss impacts profitability.
- Low Environmental Impact: No combustion emissions (e.g., CO₂, NOₓ) from fuel, and flue gas is easier to treat. Reduces heavy metal pollution, aligning with strict environmental regulations.
- High Metal Recovery Rate: Uniform heating and controllable slag composition maximize separation of precious metals from impurities, especially for low-grade ores or complex secondary resources.
- Flexibility: Adaptable to diverse raw materials (ores, scraps, catalysts) and small-to-large production scales, from laboratory refining to industrial-scale smelting.
Product Tags:
|
|

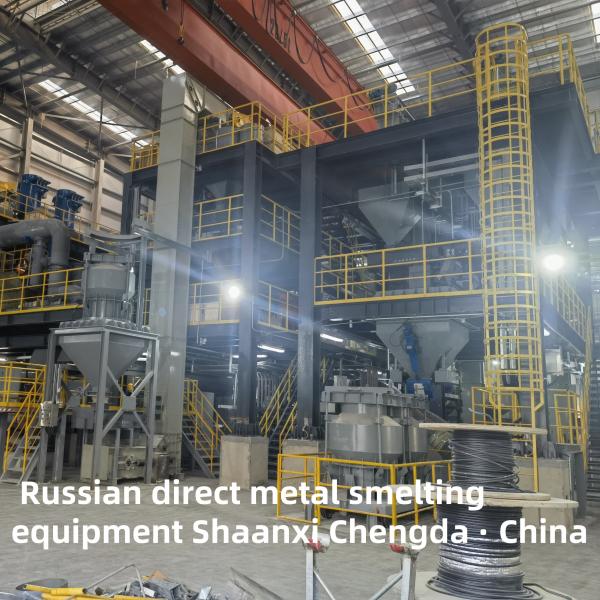

Precious metal smelting electric furnace equipment Images
|
